Additional information
Weight | 1.5 lbs |
---|---|
Shipping Dimensions | 9.75 × 7.5 × 1.85 in |
Material | |
Color | |
Durometer | |
Kit Type | AS568 – 30 |
Our Office is Closed for the Weekend. We Will Open at 8 am CST on Monday. After Hours Service
Weight | 1.5 lbs |
---|---|
Shipping Dimensions | 9.75 × 7.5 × 1.85 in |
Material | |
Color | |
Durometer | |
Kit Type | AS568 – 30 |

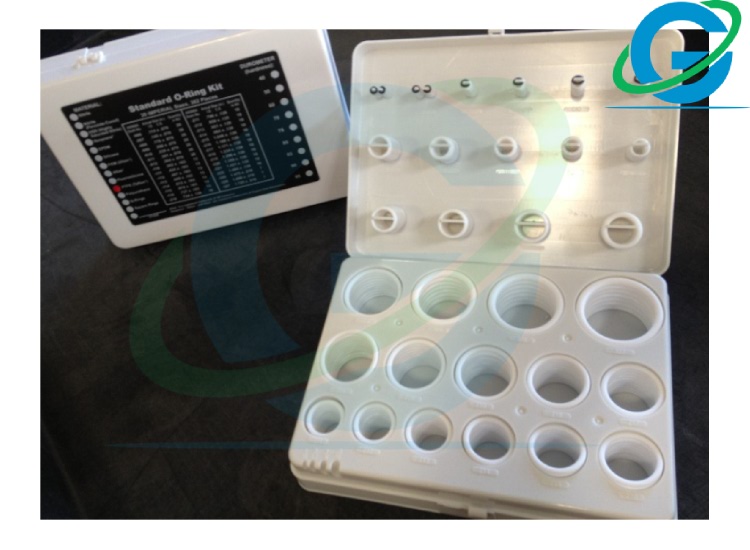

This kit contains 382 O-Rings in the 30 most popular sizes, providing an extremely low cost per size value. O-Rings conform dimensionally to AS568 universal series. Kits are available from stock in an assortment of different compounds.
Nominal Ref | Actual Size | |||||
---|---|---|---|---|---|---|
Dash # | Kit QTY | CS | ID | OD | CS | ID |
-005 | 10 | 1/16 | 3/32 | 7/32 | .070″ | .101″ |
-006 | 10 | 1/16 | 1/8 | 1/4 | .070″ | .114″ |
-007 | 10 | 1/16 | 5/32 | 9/32 | .070″ | .145″ |
-008 | 10 | 1/16 | 3/16 | 5/16 | .070″ | .176″ |
-009 | 10 | 1/16 | 7/32 | 11/32 | .070″ | .208″ |
-010 | 10 | 1/16 | 1/4 | 3/8 | .070″ | .239″ |
-011 | 10 | 1/16 | 5/16 | 7/16 | .070″ | .301″ |
-012 | 10 | 1/16 | 3/8 | 1/2 | .070″ | .364″ |
-013 | 6 | 1/16 | 7/16 | 9/16 | .070″ | .426″ |
-014 | 6 | 1/16 | 1/2 | 5/8 | .070″ | .489″ |
-015 | 6 | 1/16 | 9/16 | 11/16 | .070″ | .551″ |
-016 | 6 | 1/16 | 5/8 | 3/4 | .070″ | .614″ |
-017 | 5 | 1/16 | 11/16 | 13/16 | .070″ | .676″ |
-018 | 5 | 1/16 | 3/4 | 7/8 | .070″ | .739″ |
-110 | 6 | 3/32 | 3/8 | 9/16 | .103″ | .362″ |
-111 | 6 | 3/32 | 7/16 | 5/8 | .103″ | .424″ |
-112 | 6 | 3/32 | 1/2 | 11/16 | .103″ | .487″ |
-113 | 6 | 3/32 | 9/16 | 3/4 | .103″ | .549″ |
-114 | 6 | 3/32 | 5/8 | 13/16 | .103″ | .612″ |
-115 | 6 | 3/32 | 11/16 | 7/8 | .103″ | .674″ |
-116 | 6 | 3/32 | 3/4 | 15/16 | .103″ | .737″ |
-117 | 4 | 3/32 | 13/16 | 1 | .103″ | .799″ |
-118 | 4 | 3/32 | 7/8 | 1-1/16 | .103″ | .862″ |
-119 | 4 | 3/32 | 15/16 | 1-1/8 | .103″ | .924″ |
-120 | 4 | 3/32 | 1 | 1-3/16 | .103″ | .987″ |
-121 | 4 | 3/32 | 1-1/16 | 1-1/4 | .103″ | 1.049″ |
-210 | 5 | 1/8 | 3/4 | 1 | .139″ | .734″ |
-211 | 5 | 1/8 | 13/16 | 1-1/16 | .139″ | .796″ |
-212 | 5 | 1/8 | 7/8 | 1-1/8 | .139″ | .859″ |
-213 | 5 | 1/8 | 15/16 | 1-3/16 | .139″ | .921″ |
-214 | 5 | 1/8 | 1 | 1-1/4 | .139″ | .984″ |
-215 | 5 | 1/8 | 1-1/16 | 1-5/16 | .139″ | 1.046″ |
-216 | 5 | 1/8 | 1-1/8 | 1-3/8 | .139″ | 1.109″ |
-217 | 5 | 1/8 | 1-3/16 | 1-7/16 | .139″ | 1.171″ |
-218 | 5 | 1/8 | 1-1/4 | 1-1/2 | .139″ | 1.234″ |
-219 | 5 | 1/8 | 1-5/16 | 1-9/16 | .139″ | 1.296″ |
