Summary

O-Ring manufacturing involves detailed steps: compounding, molding, curing, trimming, and finishing. Each stage is crucial for achieving optimal performance and reliability in the final product.
Compounding blends elastomers with additives, using specialized equipment like Banbury mixers and two-roll mills to ensure consistency and desired material properties for o-ring performance.
Quality control focuses on ASTM D2000 compliances and tolerance accuracy, with thorough testing and precise documentation ensuring o-rings meet high standards for durability and effectiveness.

Introduction to O-Ring Manufacturing

The manufacturing process of o-rings involves several critical stages, each essential for ensuring the final product’s quality and performance. From the initial compounding of materials to the final packaging and distribution, each step plays a crucial role in producing o-rings that meet stringent industry standards. This comprehensive process involves meticulous blending and molding and precise curing, trimming, and rigorous testing to guarantee that each o-ring performs reliably across its intended application.

Compounding Process

The compounding process is a critical step in manufacturing o-rings, setting the foundation for their performance and longevity. This stage involves carefully blending raw materials with additives to create a compound with the desired properties.

In the compounding process, raw elastomers are combined with various additives to achieve specific characteristics such as enhanced flexibility, durability, and resistance to environmental factors. The base elastomer gets mixed with curing agents, plasticizers, fillers, and stabilizers. The precise formulation and blending of these components are crucial for achieving the desired properties of the final o-ring, such as its hardness, elasticity, mechanical strength, and resistance to chemicals and temperatures. Each additive serves a unique purpose:

Curing Agents: Facilitate the cross-linking of elastomer chains, enhancing the material’s strength and elasticity.
Plasticizers: Improve the material’s flexibility and processability.
Fillers: Add bulk and modify the physical properties of the compound.
Stabilizers: Protect the material from degradation due to heat, light, or oxidation.

The compounding process utilizes specialized equipment to ensure thorough and consistent mixing of materials. Each type of equipment plays a role in ensuring the compound achieves the required consistency and quality.

Banbury Mixers: Heavy-duty machines that complete the initial mixing of raw elastomers and additives. They use high shear forces to blend ingredients thoroughly.
Two-Roll Mills: Used for further mixing and refining the compound. The rolls help achieve a uniform consistency and allow for the addition of fine powders or additives.
Continuous Mixers: Provide a more consistent and efficient mixing process, especially for large-scale production.

Quality control is integral during the compounding process to ensure the final product meets the specifications. Regular checks monitor material consistency, mixing time and temperature, and additive ratios to help prevent defects and ensure that the o-rings produced are reliable and perform as expected.

Molding Process

The molding process is a crucial stage in the manufacturing of o-rings, where the compounded material takes its final form. This process involves several techniques and precise parameters to ensure that the o-rings meet the required specifications. The main molding techniques used in o-ring manufacturing include compression, injection, and transfer molding. Each method has its advantages and is chosen based on the specific requirements of the o-ring design:

Compression Molding: Involves placing a pre-measured amount of compound into an open mold cavity, which is then closed and heated. The heat and pressure cause the material to flow and take the shape of the mold. This technique is well-suited for producing large quantities of o-rings and complex shapes.
Injection Molding: Utilizes a machine to inject the molten compound into a closed mold under high pressure. This method allows for high precision and is ideal for manufacturing intricate and detailed o-ring designs. It is commonly used for high-volume production.
Transfer Molding: Involves transferring the compound from a preheated pot into a mold cavity under pressure. This technique is used for producing parts with complex geometries and is beneficial for materials that are difficult to flow in injection molding.

The process parameters, such as temperature, pressure, and cycle time, play a significant role in determining the quality of the molded o-rings. Manufacturers must carefully control each parameter to achieve the desired properties:

Temperature: The temperature of the mold and the compound affects the flow and curing of the material. Proper temperature control ensures uniform molding and prevents defects.
Pressure: The pressure applied during molding influences the density and strength of the o-ring. Accurate pressure settings are necessary to achieve the correct dimensions and sealing performance.
Cycle Time: The duration of each molding cycle impacts overall production efficiency and quality. Optimized cycle times balance production speed with the need for thorough curing and cooling.

Post-molding cooling and curing procedures are essential for achieving the final properties of the o-ring. After molding, the o-rings must gradually cool down to prevent warping and ensure dimensional stability. If not completed during molding, the curing process may continue in a separate curing oven to finalize the cross-linking of the material. Proper cooling and curing are critical for ensuring the o-rings achieve their desired mechanical properties and performance characteristics.

Curing (Vulcanization)

Curing, also known as vulcanization, is a critical process in the manufacturing of o-rings. It transforms the raw compound into a durable and functional material. At its core, curing involves heating the compound material to initiate a chemical reaction that forms cross-links between the elastomer chains. This cross-linking process significantly improves the material’s strength, elasticity, and resistance to environmental factors. Without curing, the elastomer would remain too soft and flexible, lacking the necessary integrity and durability for effective sealing.

Curing agents, also known as curatives or accelerators, facilitate the cross-linking reaction. Common curing agents include sulfur, used in sulfur vulcanization to create cross-links between polymer chains, and peroxide-based agents, employed in peroxide curing systems. Each curing agent influences the final properties of the o-ring, such as its hardness, flexibility, and resistance to heat and chemicals.

There are several methods of curing, each suited to different materials and applications:

Heat Curing: This method involves heating the material in a mold or oven to activate the curing agents. Carefully controlling the temperature and duration of heating ensures proper cross-linking. Heat curing is commonly used in compression and transfer molding processes.
Chemical Curing: This method involves adding chemical curing agents that react at room or mild temperatures. It is often used for materials sensitive to high temperatures or requiring specific curing conditions. Chemical curing can also be used with heat curing to achieve desired properties.

Monitoring and controlling the curing process is essential to ensure the final o-ring meets the required specifications. Like the molding process, the temperature, time, and pressure parameters are vital to controlling the curing process, as successful curing enhances the mechanical strength, elasticity, and overall durability of the o-ring. Cured elastomers exhibit improved resistance to heat, chemicals, and environmental factors, making them suitable for demanding applications. The cross-linked structure formed during curing gives the o-ring its characteristic resilience and dimensional stability, ensuring a reliable and effective seal in various operating conditions.

Overall, the curing process is integral to achieving the high-performance characteristics of o-rings, transforming the compounded material into a robust and reliable sealing solution.

Trimming and Finishing

The trimming and finishing phase is the final step in the o-ring manufacturing process, ensuring that each o-ring meets the required specifications and is ready for use. This stage involves several key activities that contribute to the overall quality and functionality of the final product.

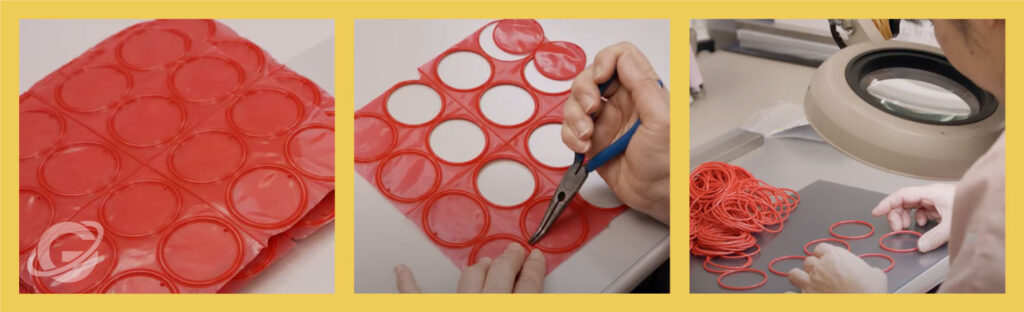

The first task in this phase is removing flash and excess material. Flash refers to the thin layer of excess rubber that can form along the edges of the o-ring due to the molding process. Careful removal is critical to ensure the o-ring meets dimensional tolerances and has a smooth surface. Flash removal typically uses cutting tools, trimming machines, or automated systems designed to efficiently and accurately remove excess material.

Surface finishing techniques are then employed to enhance the appearance and performance of the o-rings. Various methods are used depending on the desired finish:

Grinding: This technique smooths out rough surfaces and achieves precise dimensions. Grinding helps remove minor imperfections and ensures a uniform surface texture.
Polishing: Polishing removes fine scratches and enhances the o-ring’s visual appeal for applications requiring a smooth, high-quality surface finish.
Bead Blasting: This method creates a specific surface texture or prepares the o-ring for further processing.

Precision in trimming is of the utmost importance to ensure that each o-ring meets the exact specifications required for its application. Any deviations from the specified dimensions or surface quality can impact the o-ring’s performance and ability to form an effective seal. Accurate trimming and finishing are essential for maintaining consistency and ensuring that the o-rings function reliably in their intended applications.

Quality Control and Testing

Quality control and testing are pivotal in ensuring that o-rings meet the required performance and reliability standards. This phase involves various procedures and tests to verify the o-rings adhere to specifications and perform effectively in the intended applications.

Compliance with ASTM D2000 standards is vital to quality control in o-ring manufacturing. ASTM D2000 is a specification that outlines the requirements for rubber materials used in industrial applications. Compliance with ASTM D2000 ensures that the o-ring meets rigorous standards for properties such as tensile strength, elongation, compression set, and hardness. This testing evaluates how well the o-ring material performs under specific conditions and helps identify potential weaknesses or deviations from the required specifications.

Tolerance compliance is another critical factor in quality control. During and after manufacturing, it is essential to ensure that the o-rings meet precise dimensional tolerances:

During Manufacturing: Monitoring and controlling the molding and curing processes helps to maintain dimensional accuracy. Variations in temperature, pressure, or curing times can affect the final dimensions of the o-ring.
Post Manufacturing: Conducting final inspections verifies that the o-rings adhere to specified tolerances. The inspections may involve measuring the o-ring with precision instruments and checking them against design specifications.

Handling and documenting test results are crucial for maintaining quality assurance. Recording and analyzing test results ensures each o-ring meets the required standards. This documentation provides a comprehensive record of the quality control process and helps track any issues or improvements. Proper test data handling ensures transparency and facilitates prompt resolution of potential problems.

By adhering to ASTM D2000 compliance and carefully managing tolerance requirements, manufacturers can ensure that their o-rings are of high quality and reliability. This thorough approach to quality control and testing meets industry standards and assures customers that the o-rings will perform effectively in their intended applications.

Conclusion

In conclusion, the meticulous manufacturing process of o-rings ensures that these essential components meet the highest performance and reliability standards. By carefully managing each stage and adhering to stringent quality control measures, manufacturers can produce o-rings that deliver exceptional durability and effectiveness in various applications. This thorough approach not only upholds industry standards but also reinforces the trust and satisfaction of customers who rely on o-rings for critical sealing functions.
