Sealing For Hydraulics and Pneumatics

Summary

• Seals are vital to the efficiency and safety of hydraulic and pneumatic systems, preventing leaks and maintaining pressure across various industrial applications.
• Different types of seals, like o-rings, backup rings, and x-rings, are designed for specific tasks, and material choice greatly influences their effectiveness and longevity.
• Properly selected and maintained seals reduce operational downtime, extend system lifespan, and ensure safety, making them indispensable components in hydraulic and pneumatic systems.

Introduction

Hydraulic and pneumatic systems are integral to many industrial and commercial applications. They function as gatekeepers, preventing leaks and ensuring optimal pressure, thereby safeguarding the efficiency and longevity of these systems. This post discusses the critical elements that make up hydraulic and pneumatic systems, the types of seals essential for their operation, and how the choice of material can significantly impact their efficiency and safety.

Basics of Hydraulic Systems

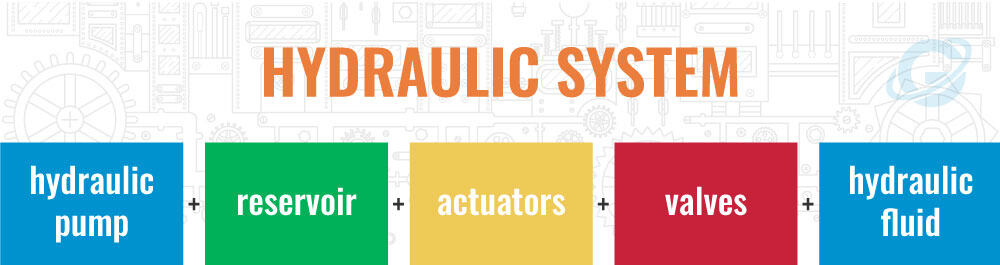

Hydraulic systems are an essential part of various industrial applications. Understanding their basics is vital to appreciating the critical role of seals. A typical hydraulic system consists of a few core components, such as the hydraulic pump, reservoir, actuators, valves, and hydraulic fluid. Each part has a specific function and must work harmoniously to ensure efficient operation. The integrity of these components often relies on effective sealing to prevent leaks, maintain pressure, ensure efficiency, and contribute to the system’s reliability and longevity.

In simple terms, hydraulic systems operate on the principle of using fluid to transmit force and motion. The hydraulic pump pressurizes the hydraulic fluid, typically oil, which is then directed by valves to actuators like hydraulic cylinders or motors that perform the work. This cycle’s seamless operation depends on proper sealing at various junctures to ensure that the fluid remains pressurized and uncontaminated.

Pressure is the driving force in any hydraulic system. It enables heavy lifting, precise movements, and various other applications. Any pressure loss can drastically affect performance and safety. Seals pivotally maintain pressure by effectively containing and directing the hydraulic fluid where it needs to go.

Hydraulic systems find typical applications in sectors such as manufacturing machinery, automotive braking systems, and aircraft controls. In all these applications, the stakes are high for system failures, making proper sealing a requirement and a critical safety measure. Different hydraulic systems require specific types of hydraulic fluid, ranging from mineral oil to synthetic fluids. Fluids interact differently with various materials, impacting the seals used in an application. This variety emphasizes the need to choose the right sealing solutions for each specific application.

In a hydraulic system, a single leak can lead to operational downtime or dangerous working conditions. Seals prevent fluid leakage, keeping the system running optimally and safely. Inadequate or failing seals can have disastrous consequences, including loss of system pressure, contamination or hydraulic fluid, increased wear and tear on components, and system failure. These issues can result in constant downtime, repairs, or significant safety risks.

Given the importance of pressure maintenance, fluid containment, and system integrity, it’s clear that seals are not just peripheral components. They are central to the reliable operation of hydraulic systems. By understanding the basic principles and elements of hydraulic systems, one can better appreciate seals’ indispensable role.

Basics of Pneumatic Systems

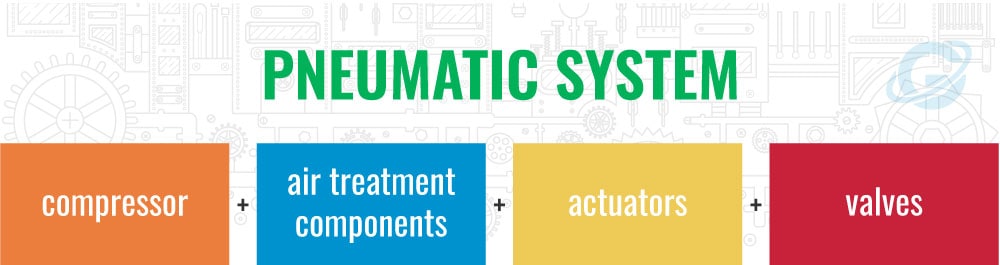

Pneumatic systems are fundamental to various industrial and commercial applications. Unlike the fluids used in hydraulic systems, these systems rely on compressed air or gas to transmit force and motion. The core components in a pneumatic system include the compressor, air treatment components, actuators, and valves for direction control. Each element must work seamlessly together for effective operation, and it’s here that the role of seals becomes critical. They maintain pressure, ensure operational efficiency, prevent contamination, and safeguard the performance and reliability of the system.

The operation of a pneumatic system starts with the compressor, which draws in ambient air and compresses it. This compressed air is sent through air treatment components to remove impurities and moisture before being directed to actuators via a series of valves. The actuators, either linear or rotary, then perform the mechanical work required. Without effective seals at different junctures like valves and actuators, maintaining the necessary air pressure and purity would be difficult, if not impossible.

Pressure is an integral part of pneumatic systems, driving the air or gas to where it needs to go and enabling various functions and applications. Any loss in pressure could lead to inefficiencies and even render the system inoperative. Seals again take on the essential role of maintaining pressure by effectively containing the compressed air and optimizing its efficiency.

Typical applications for pneumatic systems range from industrial manufacturing lines to HVAC control systems and even some types of power tools. The reliability of these systems is paramount, making proper sealing techniques advantageous and necessary. Specific systems may use a variety of compressed gasses, and each type of gas may have different sealing requirements. Therefore, choosing a suitable material and type is crucial for maintaining system integrity.

Proper sealing in pneumatic systems is critical. A compromised seal can lead to a myriad of problems, including air leakage, which reduces efficiency and can lead to system failure. Even worse, inadequate seals can pose significant safety risks, especially in systems with high-pressure or specialized gasses.

Should seals fail or prove inadequate, the consequences can be severe, ranging from decreased operational efficiency to complete system failure. Problems can include air leaks, contamination from moisture or impurities, increased wear and tear on system components, and elevated safety risks. Given the potential for a negative impact on operation and safety, ensuring that seals are up to the task is critical.

In light of their important role in maintaining system pressure, ensuring efficiency, and preventing contamination, seals are far from a minor detail in pneumatic systems. They are a central feature whose quality and appropriateness for a given application can significantly influence the system’s overall performance and reliability.

Types of Seals Used in Hydraulics and Pneumatics

Understanding the different seals used in hydraulic and pneumatic systems is critical for ensuring efficient operation and safety. Each type of seal has a unique set of features and functions designed to meet specific challenges posed by these systems.

• O-Rings: These are the most versatile and widely used seals in hydraulic and pneumatic systems. Made from materials like Buna, Viton, or Silicone, o-rings prevent leaks in pumps, valves, and actuators. Their elastic nature allows them to maintain a seal under varying pressures.
• Backup Rings: When used in conjunction with o-rings, backup rings provide additional extrusion resistance, particularly in high-pressure applications. They are typically made from a harder material than o-rings and are used to prevent the o-ring from entering the clearance gap, ensuring long-lasting sealing efficiency.
• X-Rings: Also known as quad rings, these are used in similar applications as o-rings but provide lower friction and better wear resistance. They are instrumental in reciprocating applications where the seal is in constant motion, making them ideal for hydraulic and pneumatic systems.
• Cord Stock: This is a continuous length of cured seal material often cut and joined to form a custom-sized o-ring. For large or irregularly shaped applications, cord stock can be a lifesaver in hydraulic and pneumatic repairs and maintenance.
• U-Cups: Named for their U-shaped profile, these seals are ideal for piston and rod applications. They provide excellent sealing efficiency and are easy to install, making them popular in both hydraulic and pneumatic systems.
• T-Seals: T-Seals are designed to offer high sealing efficiency and are often used in applications where o-rings are insufficient. Their T-shaped profile helps prevent spiral failure, making them suitable for dynamic applications in hydraulics and pneumatics.
• D-Rings: These seals have a flat base, which provides stability in the groove and reduces the risk of rolling or twisting. D-Rings are used for similar applications as o-rings but offer improved sealing capabilities under low-pressure conditions.
• Wipers: While not technically seals, wipers serve the crucial role of cleaning the rod in the cylinder as it retracts, preventing contamination of the hydraulic or pneumatic system. This precaution ensures that other seals and system components have a longer lifespan and operate more efficiently.

By having a comprehensive understanding of the different types of seals and their specific applications, one can make informed decisions on the most appropriate sealing solutions for hydraulic and pneumatic systems, which enhances performance and significantly mitigates the risk of system failure.

Material Choices for Seals

Selecting the appropriate seal material is paramount for ensuring the efficient and safe operation of both hydraulic and pneumatic systems. Several factors come into play when choosing a material, including temperature, pressure, and chemical compatibility. Each type of material has its unique properties that make it more or less suited to specific applications.

Material	Description	Hydraulic Application	Pneumatic Application
Nitrile (NBR)	Good resistance to oils and water-based fluids.	Suitable for petroleum-based hydraulic fluids.	Used in compressors and air-driven equipment.
Viton (FKM)	Excellent chemical and heat resistance.	Often used in high-temperature hydraulic systems.	Suitable for high-temperature pneumatic systems.
EPDM	Good for water-based fluids, resists ozone and UV.	Used with water-glycol-based hydraulic fluids.	Common in outdoor pneumatic applications.
Silicone	High-temperature capability, poor wear resistance.	Used in food-grade hydraulic systems.	Often used in food-grade pneumatic systems.
Teflon (PTFE)	Extreme temperature and chemical resistance, less flexible.	Ideal for extreme temperature hydraulic systems.	Used in high-temperature and chemical-resistant pneumatic applications.
Aflas	Excellent heat and chemical resistance.	Used in extreme environments like the oil and gas industry.	Suitable for chemically aggressive pneumatic applications.

The Role of Seals in Maintaining System Integrity

Seals quietly work to maintain the system’s integrity. They are essential for the system’s overall efficiency, safety, and longevity. Quality and appropriately chosen seals act as the frontline defense against leaks. A leak-free system naturally operates at its peak, ensuring minimal loss of hydraulic fluid or compressed air, enabling the system to deliver maximum power output with minimal energy wastage.

Maintaining the correct pressure is another crucial aspect of effective operation in hydraulic and pneumatic systems. Here, seals provide a tight barrier the prevents the escape of fluids or gasses, maintaining operating pressure and serving as a barrier against contaminants like dirt, dust, and moisture. Rod seals, wipers, and scrapers work together to keep these contaminants out of hydraulic cylinders, thus ensuring smooth operation while minimizing wear and tear on the system.

This protection against leaks and contamination has a cascading effect, extending the system’s lifespan. A well-maintained system with quality seals is likely to require fewer replacements and less frequent maintenance, thereby lasting longer. Moreover, in many applications, seals also help maintain necessary lubrication in critical system components. Some hydraulic seals, for example, are specifically designed to retain lubricating fluids, which minimizes friction and wear on moving parts and contributes to reducing overall maintenance costs

Cost efficiency is another advantage of a well-sealed system. Reduced need for frequent maintenance translates to less downtime, lowering the associated costs. High-quality seals can offset the initial costs by minimizing the need for future replacements and maintenance interventions.

Lastly, seals play an irrefutable role in the safety of hydraulic and pneumatic systems. A failed seal can lead to hazardous working conditions, including the possibility of slips, fires, or even catastrophic system failure. In summary, the role of seals in hydraulic and pneumatic systems is multifaceted and indispensable. By making informed choices about the types and materials of seals you use, you’re not only ensuring the efficiency and reliability of your system but also safeguarding those who operate it.

Conclusion

Understanding the importance of seals in hydraulic and pneumatic systems is crucial for anyone involved in the maintenance, operation, or design of these systems. Seals are pivotal elements that directly influence the reliability, efficiency, and safety of a system. They act as sentinels, guarding against leaks, maintaining pressure, and as a barrier against contaminants. Selecting suitable types and materials for your seals is a matter of performance and safety. Making informed choices about your sealing solutions is paramount to ensuring the optimal functionality of your hydraulic or pneumatic system. For expert guidance, trust Global O-Ring and Seal to provide the quality and reliability you need. Contact us today to discuss your specific requirements or request a quote.
