Set, Stress Relaxation, and Rebound

Summary

• Set in elastomer seals indicates permanent deformation after compression; materials with low set values are essential for maintaining seal integrity and functionality.
• Stress relaxation describes the decrease in force exerted by a seal over time; understanding this phenomenon is crucial for ensuring sustained seal effectiveness under constant strain.
• Rebound, or elastic recovery, is key in dynamic applications, where a seal’s ability to return to its original shape impacts wear resistance and longevity.

Introduction

Elastomer seals are integral components in a vast array of industrial applications, serving as critical barriers against leaks and ensuring the smooth operation of machinery and systems. These seals, made from various elastomeric materials, must perform under numerous conditions, resisting deformation and wear while maintaining their sealing capabilities. Understanding the fundamental properties of these materials—specifically, their behavior in terms of set, stress relaxation, and rebound—is essential for selecting the proper seal for any given application.

Understanding Set in Elastomer Seals

Understanding the concept of set in elastomer seals is crucial for ensuring the longevity and functionality of these components in various industrial applications. The set, specifically the compression set, refers to the permanent deformation of the seal material after it has been compressed under specific conditions and for a designated period. This deformation is measured as a percentage of the original thickness the material fails to recover after removing the compressive force. The lower the compression set value, the better the material’s ability to return to its original shape, which is a key indicator of its resilience and sealing performance.

Several factors play a pivotal role in influencing the set characteristics of elastomers. These include the type of elastomer material, its formulation, its curing process, and the operational environment, such as temperature and chemical exposure. For instance, materials like Viton® (FKM) and Silicone are known for their excellent resistance to compression set, especially in high-temperature applications.

The relationship between compression set and seal efficiency cannot be overstated. A seal with a high compression set will not recover well after being compressed, leading to gaps and leaks, thus compromising the seal’s efficiency. In dynamic applications where seals are constantly compressed and relaxed, the ability of the seal material to recover to its original shape is essential to maintain an effective seal over time.

The implications of set on seal longevity and functionality are profound. A low compression set ensures the seal maintains its integrity and functions effectively over its service life, reducing the likelihood of failure and the need for replacement. This impacts the reliability of the machinery or system in which the seals are used and contributes to operational cost savings by minimizing downtime and maintenance requirements.

Ultimately, understanding and managing the set characteristics of elastomer seals is a critical aspect of seal selection and application. By choosing the right material and considering the operational environment, one can ensure that the seal will perform efficiently and last longer, contributing to the overall reliability and cost-effectiveness of the system.

Stress Relaxation and Its Implications

Stress relaxation in elastomer seals significantly affects their performance, especially in applications requiring sustained pressure and tight sealing over time. Stress relaxation refers to the gradual decrease in stress under a constant strain. For elastomer seals, the force they exert against the mating surface diminishes over time, even though the seal’s deformation remains constant. This decrease in sealing force can lead to leak paths and reduced seal effectiveness.

The mechanisms leading to stress relaxation are complex and varied, involving both the physical properties of the elastomer and the environmental conditions it is exposed to. At the molecular level, stress relaxation is influenced by the viscoelastic nature of elastomers, which behave as viscous liquids and elastic solids. Over time, the molecular chains within the elastomer rearrange to reduce internal stress, decreasing the material’s ability to maintain its original applied force. Factors such as temperature, chemical exposure, and the duration of the applied stress significantly affect the rate and extent of stress relaxation. For instance, elevated temperatures can accelerate the relaxation process, as can exposure to certain chemicals that may interact with the elastomer material.

The impact of stress relaxation on seal integrity and pressure maintenance is profound. As the sealing force decreases, the seal’s effectiveness in preventing fluid or gas leakage diminishes, potentially leading to operational failures or safety hazards. In critical applications, such as aerospace, automotive, and oil and gas industries, where seals must maintain their integrity under high pressures and varying temperatures, the consequences of stress relaxation can be particularly severe.

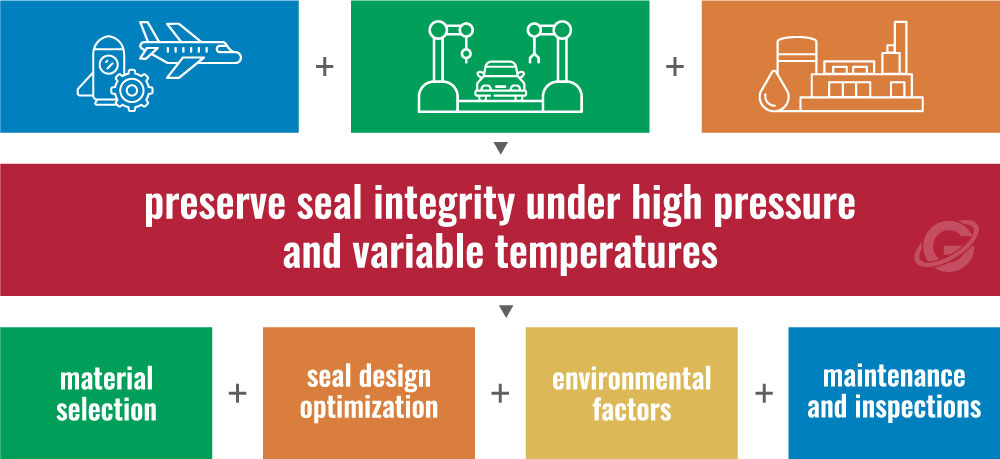

Several strategies can be employed to mitigate the effects of stress relaxation and ensure the longevity and reliability of elastomer seals. Material selection is crucial; choosing elastomers with inherently low-stress relaxation properties for specific application conditions can significantly improve seal performance. Additionally, optimizing the seal design to distribute stress more evenly and reduce the strain on any one part of the seal can help. Environmental factors, such as operating temperature and chemical compatibility, should also be carefully considered and controlled. Finally, regular maintenance and inspection schedules can help identify early signs of stress relaxation and allow timely interventions to maintain seal integrity.

By understanding the causes and consequences of stress relaxation and implementing these mitigation strategies, engineers and designers can enhance the performance and reliability of elastomer seals in their applications, ensuring they meet the rigorous demands of modern industrial operations.

The Role of Rebound in Seal Performance

The role of rebound, or elastic recovery, in the performance of elastomer seals is a critical aspect that dictates their effectiveness, especially in dynamic sealing applications. Rebound refers to the ability of an elastomer to return to its original shape after being deformed, a property that directly impacts the seal’s resilience and capacity to withstand repeated compressions and extensions. This elastic recovery is crucial for maintaining a tight seal over time, even under varying pressures and in the presence of fluid or gas pulsations.

The correlation between rebound properties and seal performance is particularly evident in dynamic seal applications, such as those in rotary and reciprocating systems. Seals in these contexts are subject to continuous movement and deformation, requiring materials that can quickly recover their shape to maintain an effective sealing barrier. The rebound characteristics of the elastomer material determine its ability to resume its original dimensions and continue to perform its sealing function without degradation.

The influence of rebound characteristics on seal wear and fatigue resistance is substantial. Materials with high rebound efficiency are less likely to suffer from permanent deformation or set, which can lead to gaps and leakage paths. Furthermore, a high rebound capability reduces the wear on the sealing surface, as the material can absorb and dissipate the energy from impacts and vibrations more effectively. This resilience against wear and fatigue ensures the seal maintains its integrity and sealing performance over a longer service life, even under harsh operating conditions.

Applications where rebound is a critical performance parameter include automotive engines, hydraulic and pneumatic systems, and industrial machinery. In these applications, the seals are exposed to rapid and repeated cycles of compression and relaxation, requiring materials that can endure without significant loss of sealing capability. Choosing an elastomer material with appropriate rebound properties is essential to ensure these systems’ reliability, safety, and efficiency. For instance, in the automotive sector, seals within fuel injection systems must exhibit excellent rebound properties to cope with the high-frequency pulsations and temperature fluctuations encountered during engine operation.

Understanding the importance of rebound in seal performance enables designers and engineers to make informed material selections and design decisions. By prioritizing elastomer materials with superior rebound characteristics for dynamic sealing applications, it is possible to enhance the durability, efficiency, and reliability of the seals, thereby extending the lifespan of the equipment and minimizing maintenance requirements.

Material Selection and Compound Impact

The efficacy and dependability of elastomer seals across diverse applications are profoundly influenced by the material selection and its specific compound formulation. This critical choice is underpinned by understanding the elastomer’s inherent properties, particularly its resilience against compression set, its capability for stress relaxation, and its rebound potential. These characteristics, fundamentally rooted in the material’s chemical structure and processing, dictate how well a seal performs under the rigors of its intended use.

Selecting the ideal elastomer involves careful evaluation of several pivotal factors to ensure the seal can meet the demands of its operational environment effectively:

• Temperature Resistance: An elastomer’s ability to withstand varying degrees of temperature is essential, with materials such as Silicone and Fluorocarbon (FKM) standing out for high-temperature applications. Conversely, Nitrile (Buna) is often preferred for environments where temperatures remain within a moderate range.
• Chemical Compatibility: A seal must endure the chemical substance it encounters. Viton®, for example, is celebrated for its robust chemical resistance, making it an excellent choice for seals in oil and fuel contexts.
• Physical Properties: The durability and functionality of a seal are also dictated by the elastomer’s hardness, tensile strength, and elasticity. These physical traits are crucial in determining how well a seal can withstand the pressure and stresses of its application.
• Application-Specific Demands: The selection process is further refined by the application’s unique requirements, including the need to accommodate pressure fluctuations, the nature of the application (static vs. dynamic), and the potential for abrasive wear.

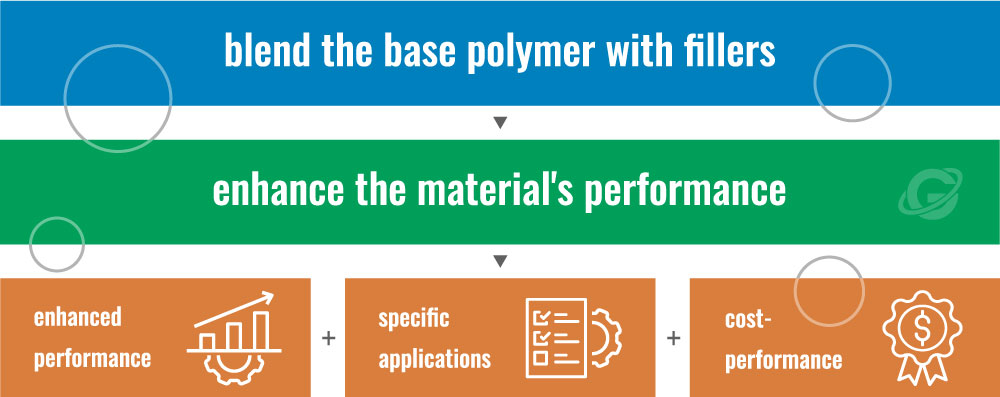

The compound formulation process is instrumental in fine-tuning these properties. By meticulously blending the base polymer with a suite of fillers, plasticizers, curing agents, and other additives, manufacturers can enhance the material’s performance, specifically targeting:

• Enhanced Performance: Strategically incorporating additives can significantly bolster the elastomer’s resistance to compression set, amplify its stress relaxation properties, and elevate its rebound efficiency. This is particularly relevant in applications where the seal is expected to maintain its integrity and elasticity over many compression and relaxation cycles.
• Customizations for Specific Applications: Adjusting the compound formulation allows for creating elastomers that are precisely tailored to meet the demands of specific environments, whether that means heightened resistance to particular chemicals or improved resilience under extreme thermal conditions.
• Optimal Cost-Performance Ration: The formulation process also balances cost-efficiency and performance, enabling the development of elastomer compounds that fulfill application needs without excess expenditure.

In essence, selecting the appropriate elastomer material, guided by a nuanced understanding of set, stress relaxation, and rebound properties, is a cornerstone of achieving superior seal performance. This approach assures the seal’s function and longevity and enhances the operational efficiency and durability of the systems they serve, significantly influencing the success and cost-effectiveness of industrial applications. By prioritizing materials that align with the specific demands of the application, engineers can markedly improve the durability, reliability, and overall performance of elastomer seals.

Conclusion

The performance of elastomer seals is a nuanced interplay of material properties, design considerations, and application-specific demands. Seal longevity and functionality can be significantly improved by thoroughly understanding and strategically addressing the effects of set, stress relaxation, and rebound. Material selection and compound formulation emerge as foundational elements in this process, offering a pathway to customize seals that meet the precise needs of any application. Moreover, acknowledging the critical role of design in mitigating stress and enhancing rebound properties underscores the holistic approach required for optimal seal performance. As we’ve explored, the right combination of material science and engineering insights can lead to seals that meet and exceed modern industrial operations’ demands. Ultimately, the success of elastomer seals—and, by extension, the system they protect—rests on a deep understanding of these materials’ intrinsic properties and how they can be leveraged to achieve unparalleled sealing performance.
