Mastering O-Ring Durometer Scales

Summary

• O-Ring hardness, measured on the durometer scale, plays a critical role in sealing performance and long-term reliability across industrial applications.
• Durometer influences key performance characteristics, including wear resistance, compression behavior, chemical resistance, and flexibility, all of which affect how well a seal performs in service.
• Selecting the correct hardness and verifying it with proper measurement helps ensure reliable sealing performance and reduce the risk of premature seal failure.

Introduction

O-Rings provide critical sealing functions that prevent leaks and maintain system pressure across a wide range of industrial applications. Their performance and service life depend on several factors, including material composition, size, and hardness.

O-Ring hardness, measured using the durometer scale, plays a central role in determining sealing performance. Durometer influences key characteristics such as wear resistance, flexibility, and a seal’s ability to maintain contact under varying pressures and temperatures. Understanding how durometer affects elastomer behavior allows engineers and technicians to select o-rings that perform reliably within their intended operating conditions.

The Durometer Scale Basics

The durometer scale measures the hardness of elastomer materials and indicates how resistant a material is to indentation. In sealing applications, durometer is a critical specification because hardness directly influences compression behavior, extrusion resistance, and sealing reliability.

The term durometer refers both to the property being measured and to the instrument used to measure it. A durometer gauge determines hardness by pressing a calibrated indenter into the material with a standardized force and measuring the depth of indentation. Softer materials allow deeper indentation and produce lower readings, while harder materials resist indentation and produce higher readings.

Two durometer scales are most relevant for elastomer seals:

1. Shore A: Used for softer elastomers such as rubber compounds commonly used in o-rings. Most sealing materials, including Nitrile, EPDM, FKM, and Silicone, fall within this range.
2. Shore D: Used for harder plastics and rigid elastomers that require greater resistance to indentation.

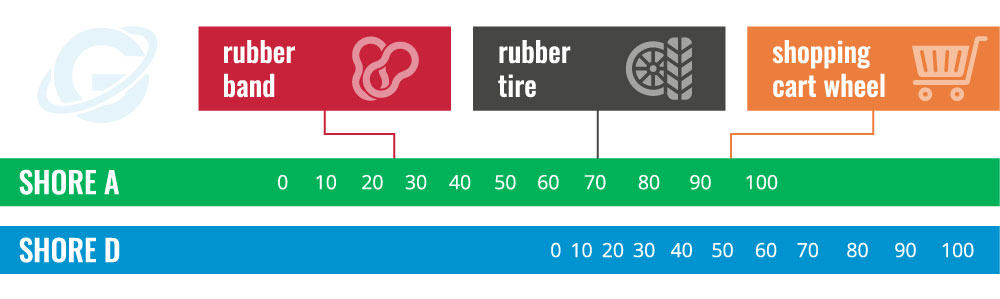

Durometer values are expressed as numbers on a 0–100 scale, with higher values representing harder materials. For example, a rubber band may measure around 25 Shore A, a typical automotive tire is approximately 70 Shore A, and a rigid shopping cart wheel may approach 95 Shore A. These comparisons illustrate how increasing durometer corresponds to increasing material stiffness.

Why Hardness Matters in O-Rings

O-Ring hardness directly affects how a seal performs under pressure, motion, and environmental exposure. Measured on the durometer scale, hardness influences several critical performance characteristics, including wear resistance, compression set behavior, chemical resistance, and flexibility. Understanding how hardness affects these factors helps engineers and technicians select the most appropriate o-ring for a given application.

Wear Resistance

Higher durometer o-rings generally provide greater resistance to abrasion and mechanical wear. In applications involving repeated motion, harder elastomers are better able to withstand friction and surface contact. This increased resistance can extend seal life in demanding environments. However, selecting the hardest material available is not always ideal, as excessive hardness may reduce the seal’s ability to conform to sealing surfaces.

Compression Set Characteristics

Hardness also influences how well an o-ring maintains its shape after being compressed. Softer elastomers may deform more easily under sustained load, potentially reducing sealing force over time. Harder materials typically resist permanent deformation more effectively, helping maintain consistent sealing pressure. However, if the durometer is too high, the seal may lose the elasticity needed to maintain contact with mating surfaces.

Chemical Compatibility

Material hardness can also correlate with improved resistance to certain chemical environments. Harder elastomers often demonstrate greater resistance to aggressive substances such as acids, solvents, and alkaline media. However, hardness alone does not determine chemical compatibility. Proper material selection requires evaluating both the elastomer compound and the specific chemicals present in the application.

Flexibility and Durability

Hardness plays a major role in determining how flexible an o-ring remains during operation. Softer materials generally provide better flexibility, allowing them to accommodate movement, vibration, and thermal expansion. Harder materials provide improved wear resistance but may become less forgiving in dynamic conditions. Selecting the correct durometer ensures the seal maintains both durability and sufficient flexibility throughout its service life.

Why Proper Durometer is Critical for Application Success

Selecting the correct o-ring durometer is essential for maintaining reliable sealing performance. The appropriate hardness allows the o-ring to compress properly against mating surfaces, creating a seal that prevents leaks while maintaining the required system pressure. When the durometer is matched to the application’s pressure, motion, and environmental conditions, the seal can maintain consistent performance and extend equipment service life.

Using an o-ring with an incorrect hardness can quickly compromise system reliability. If the durometer is too low, the seal may deform excessively under pressure, increasing the risk of extrusion, leakage, and premature failure. If the durometer is too high, the o-ring may not compress sufficiently to form an effective seal, particularly in dynamic or low-pressure applications that require flexibility.

Proper durometer selection is critical for balancing sealing force, flexibility, and durability. When hardness is aligned with the application’s mechanical and environmental demands, systems operate more reliably, maintenance intervals can be extended, and the risk of costly failures is significantly reduced.

Common Materials and Their Typical Durometer Ratings

O-Ring material selection plays a major role in sealing performance, and each elastomer is produced within a characteristic durometer range. The table below shows the typical hardness ranges for common o-ring materials available through Global O-Ring and Seal.

Material	Material Description	Durometer Scale	Durometer Range
Buna (Nitrile)	Renowned for its versatility across multiple industrial applications.	Shore A	40-90
Viton (FKM)	Highly esteemed for its superior resistance to a wide array of chemicals.	Shore A	50-95
EPDM	Excels in outdoor applications due to its remarkable weather and UV resistance.	Shore A	50-90
Silicone	Often the go-to material for applications requiring high flexibility, such as medical devices.	Shore A	40-90
AFLAS	Suited for aggressive chemicals and extreme environmental conditions.	Shore A	70-90

Industry Applications: Choosing the Right Hardness

Different industries place unique demands on sealing materials. Selecting the appropriate o-ring durometer helps ensure seals perform reliably under the pressure, temperature, motion, and chemical exposure present in each environment.

Automotive Systems

Automotive applications require o-rings across a wide range of systems, including engines, fuel systems, and hydraulic components. Because operating conditions vary significantly, durometer selection must balance durability with flexibility. Higher hardness levels are often used in engine environments where temperatures and pressures are elevated, while medium durometer materials are typically used in hydraulic systems where flexibility and sealing conformity are important. Buna (Nitrile) is widely used for its versatility and broad hardness range.

Food and Beverage Equipment

Sealing components used in food processing equipment must meet strict regulatory requirements while maintaining reliable sealing performance. Materials such as Silicone are often selected because they are chemically stable and suitable for food-contact environments. These applications commonly use softer durometer ranges that allow the o-ring to conform easily to sealing surfaces while maintaining sanitary sealing conditions.

Oil and Gas Operations

Oil and gas environments expose seals to high pressures, aggressive chemicals, and abrasive conditions. In drilling and extraction equipment, higher durometer materials are often required to resist extrusion and wear. In chemical handling or storage applications, slightly softer materials may be used to maintain flexibility and sealing integrity. Aflas (FEPM) is commonly selected for these environments due to its resistance to steam, chemicals, and harsh operating conditions.

How to Measure O-Ring Hardness

Measuring o-ring hardness requires a specialized instrument known as a durometer gauge, which is designed to measure the resistance of elastomer materials to indentation. This measurement provides the durometer value—typically on the Shore A or Shore D scale—indicating how soft or hard the material is.

A durometer gauge works by pressing a calibrated metal indenter into the material with a standardized force. The depth of the indentation determines the hardness reading. Softer materials allow deeper indentation and produce lower values, while harder materials resist indentation and produce higher readings.

Testing Procedure

1. Preparation: Place the o-ring on a flat, stable surface to ensure an accurate reading. The surface should be clean and free of debris that could interfere with the measurement.
2. Calibration: Before testing, verify that the durometer gauge is properly calibrated according to the manufacturer’s instructions. Calibration ensures the measurement reflects the true hardness of the elastomer.
3. Application of Force: Position the indenter perpendicular to the o-ring surface and apply the standardized force specified for the durometer type. The force should be applied smoothly and steadily to avoid inaccurate readings.
4. Reading and Interpretation: After the indenter has pressed into the material for the required duration. The gauge displays a numerical hardness value on either the Shore A or Shore D scale.

Common Measurement Errors

• Taking readings too quickly: The indenter requires a short settling time to produce an accurate measurement. Rapid readings can lead to inconsistent results.
• Skipping calibration: Using an uncalibrated durometer gauge can produce inaccurate hardness values, which may lead to incorrect material selection.

Conclusion

O-Ring durometer is a fundamental specification that directly influences sealing performance, durability, and system reliability. By understanding how hardness affects wear resistance, compression behavior, chemical exposure, and flexibility, engineers and technicians can make more informed decisions when selecting sealing materials.

Selecting the correct durometer ensures that an o-ring maintains proper sealing force while withstanding the mechanical and environmental demands of its application. When hardness is properly matched to operating conditions, seals perform more reliably, maintenance intervals can be extended, and the risk of system failure is significantly reduced.

Q&A: O-Ring Durometer and Hardness Selection

What happens if an o-ring is too soft for an application?

When an o-ring has a durometer that is too low for the operating pressure, the seal may deform excessively under load. This can cause the elastomer to extrude into clearances or lose the compression needed to maintain sealing contact. Selecting an o-ring with a higher durometer improves resistance to deformation and extrusion, allowing the seal to maintain consistent contact with the sealing surfaces. As a result, the system is better protected against leaks and premature seal failure.

What problems occur when an o-ring is too hard?

An o-ring with excessive hardness may not compress sufficiently to conform to the sealing surfaces. This is especially problematic in low-pressure or dynamic applications where flexibility is necessary to maintain sealing contact. Choosing an o-ring with a more appropriate durometer allows the material to deform slightly under compression, creating a more effective seal. This improved conformity helps maintain system pressure and reduces the likelihood of leakage.

How can incorrect hardness affect long-term seal performance?

If an o-ring’s durometer is not matched to the operating environment, the seal may lose effectiveness over time. Materials that are too soft may experience excessive deformation, while materials that are too hard may struggle to maintain proper compression. Selecting the correct durometer based on system pressure, movement, and environmental conditions helps the seal maintain consistent performance.

How is o-ring hardness accurately measured?

O-Ring hardness is measured using a durometer gauge, which determines how resistant an elastomer is to indentation. The gauge presses a calibrated indenter into the material with a standardized force and records the hardness value, typically on the Shore A scale for most elastomer seals. Proper calibration and controlled testing conditions ensure the measurement reflects the true hardness of the material. Accurate hardness measurement allows technicians to verify material specifications and ensure the seal meets the application’s performance requirements.

What durometer is most commonly used for o-rings?

Many general-purpose sealing applications use o-rings around 70 Shore A, which provides a balanced combination of flexibility, sealing force, and extrusion resistance. This hardness allows the material to compress effectively while maintaining durability across a wide range of operating conditions. Selecting a durometer in this range often provides reliable sealing performance for many industrial systems, though specific applications may require softer or harder materials depending on pressure, temperature, and motion.cies, operational downtime, and catastrophic failures.
